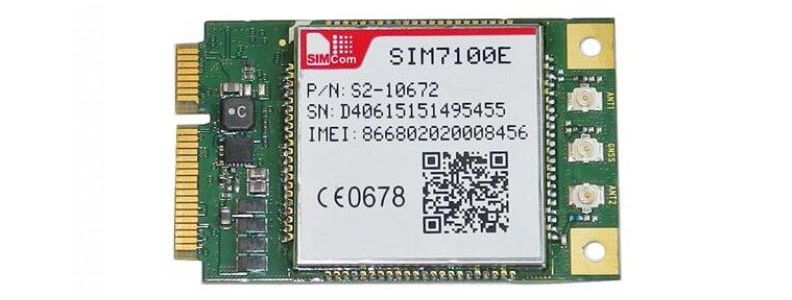

SIM7100E PCIE

Novastar SIM7100E PCIE 4G Module Details

• Electrical specifications
  • Output power GSM900: 2W
  • DCS1800: 1W
• Supply voltage range 3.0V~ 4.3V, Typ: 3.8V* Operation
• Consumption Power off: 7uA
  • PSM: 9uA
  • Sleep: 1mA
  • Idle: 11mA
• Physical specifications
  • Dimensions 24 X 24 X 2.6mm
  • Weight 3.0g
  • Working environment temperature -40℃ to +85℃
• Features
  • Support Tri-Band 4G FDD-LTE B3/B8/B20
  • Support 2G GPRS/EDGE 900/1800Mhz
  • Control Via AT Commands
  • GNSS (GPS,GLONASS and BeiDou/Compass, Galileo, QZSS)
• Interfaces
  • USB2.0 x 1 (high-speed)
  • UART x2 (7-wire UART and 2-wire UART interface multiplex from GPIO)
  • SIM card x1 (1.8V and 3V)
  • I2C x 1
  • GPIO x 5
  • ADC x 1
• Certifications CE*/ RoHS/REACH/TA/CCC*/CTA*
