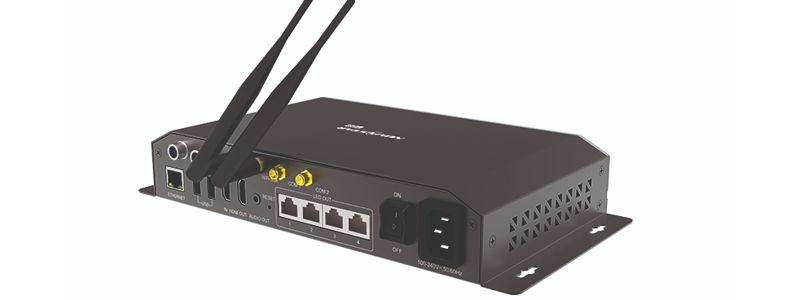

TB8

Expired product

Features:

• Synchronization for multi-screen applications
• High-performance processing
• Comprehensive planning possibilities of the content
• Dual WLAN mode (stand-alone or access point)
• Redundant backup function

Besides the possibility to control single screens via PC, Smartphone or LAN, there is also the possibility to manage several screen groups at the same time.

Hardware Features:

• 4 Ethernet ports with a processing capacity of up to 650,000 pixels per port (freely configurable)
• Gigabit Ethernet Port
• WLAN (stand-alone or as an access point)
• Stereo audio output
• HDMI 1.3 Input
• HDMI 1.3 Output
• 1.5 Ghz eight-core processor
• 2GB working memory
• 8GB internal memory (4GB usable)
• 2 USB ports for media playback (supported formats: NTFS or FAT32)
• Light sensor connection
• Temperature sensor connection
• optionally available with LTE module
• configurable via LAN/WLAN with ViPlex Express & NovaLCT

General specifications:

• Supply voltage: AC-100-240V, 50/60HZ
• Power consumption: 20Watt
• Dimensions: 278.5 x 139.5 x 45mm (WxDxH)
• Weight: 1352,3 g
